CS61A(19): Composition

This is the lecture note of CS61A - Lecture 19.

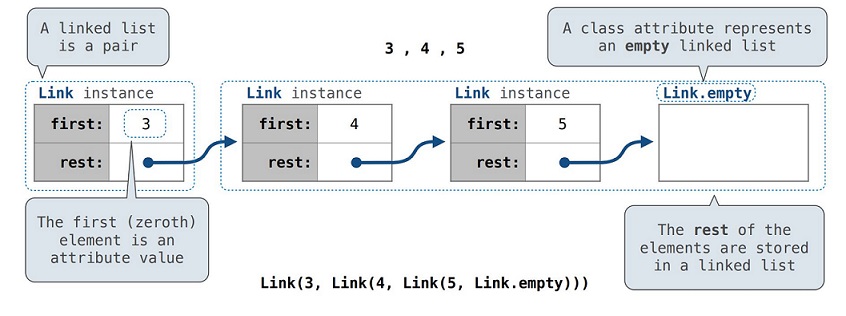

Linked Lists

A linked list is either empty or a first value and the rest of the linked list.

Let's implement this data structure.

class Link:
    """A linked list.

    >>> s = Link(3, Link(4, Link(5)))
    >>> s
    Link(3, Link(4, Link(5)))
    >>> s.first
    3
    >>> s.rest
    Link(4, Link(5))
    >>> s.rest.first
    4
    >>> s.rest.first = 7
    >>> s
    Link(3, Link(7, Link(5)))
    >>> s.first = 6
    >>> s.rest.rest = Link.empty
    >>> s
    Link(6, Link(7))
    """

    empty = ()

    def __init__(self, first, rest=empty):
        assert (rest is Link.empty) or isstance(rest, Link)
        self.first = first
        self.rest = rest

    def __repr__(self):
        if self.rest:
            rest_repr = ', ' + repr(self.rest)
        else:
            rest_repr = ''
        return 'Link(' + repr(self.first) + rest_repr + ')'

    def __str__(self):
        string = '<'
        while self.rest is not Link.empty:
            string += str(self.first) + ' '
            self = self.rest
        return string + str(self.first) + '>'

Linked List Processing

Let's see an example.

# Example: Range, Map, and Filter for Linked Lists

square, odd = lambda x: x * x, lambda x: x % 2 == 1
list(map(square, filter(odd, range(1, 6))))     # [1, 9, 25]

# Try to implement!!!
map_link(square, filter_link(odd, range_link(1, 6)))    # Link(1, Link(0, Link(25)))

• Solution:

def range_link(start, end):
    """Return a Link containing consecutive integers from start to end.

    >>> range_link(3, 6)
    Link(3, Link(4, Link(5)))
    """
    if start >= end:
        return Link.empty
    else:
        return Link(first=start, rest=range_link(start + 1, end))


def map_link(f, s):
    """Return a Link that contains f(x) for each x in Link s.

    >>> map_link(square, range_link(3, 6))
    Link(9, Link(16, Link(25)))
    """
    if s is Link.empty:
        return s
    elif:
        return Link(first=f(s.first), rest=map_link(f, s.rest))


def filter_link(f, s):
    """Return a Link that contains only the elements x of Link s for which f(x)
    is a true value.

    >>> filter_link(odd, range_link(3, 6))
    Link(3, Link(5))
    """
    if s is Link.empty:
        return s
    elif f(s.first):
        return Link(first=s.first, rest=filter_link(f, s.rest))
    else:
        return filter_link(f, s.rest)

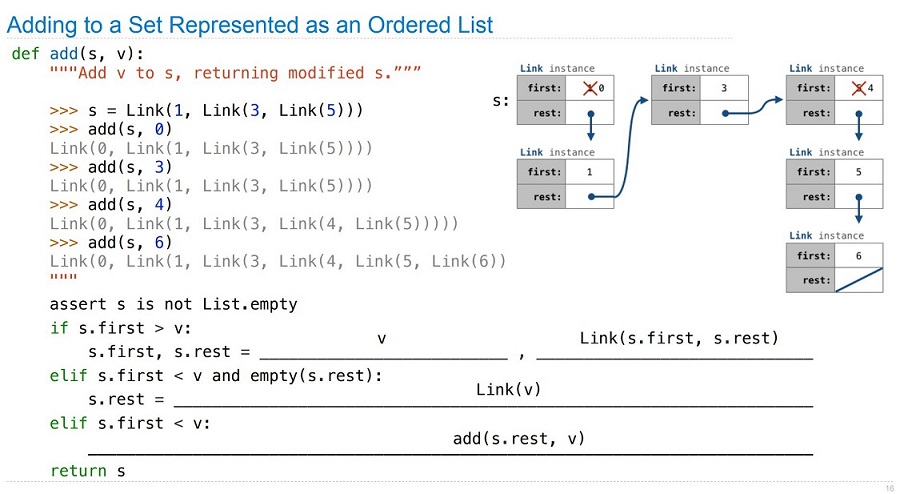

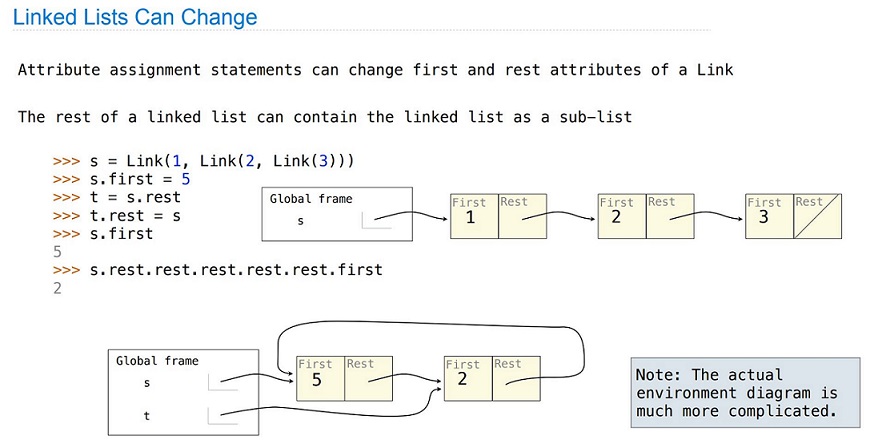

Linked List Mutation

Let's see an example.

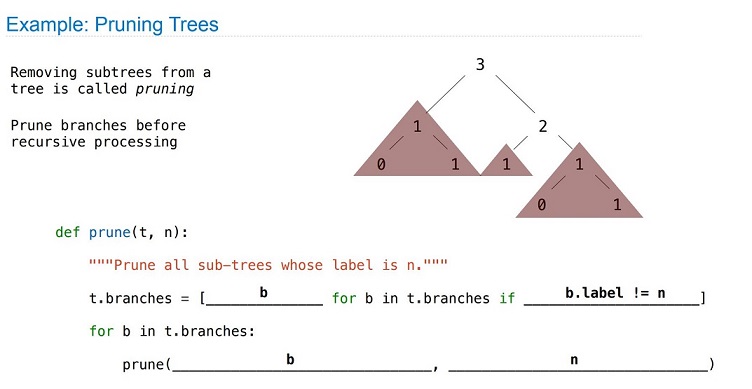

Tree Class

Tree is another recursive computational data structure.

We've already implemented it in Lecture 12 with data abstraction. Now, let's try to implement it again, but with class.

class Tree:
    """A tree is a label and a list of branches.

    >>> t = Tree(1, [Tree(3), Tree(4)])
    >>> print(t)
    1
        3
        4
    """

    def __init__(self, label, branches=[]):
        self.label = label
        for branch in branches:
            assert isinstance(branch, Tree)
        self.branches = list(branches)

    def __repr__(self):
        if self.branches:
            branch_str = ', ' + repr(self.branches)
        else:
            branch_str = ''
        return 'Tree({0}{1})'.format(repr(self.label), branch_str)

    def __str__(self):
        return '\n'.join(self.indented())

    def indented(self):
        lines = []
        for b in self.branches:
            for line in b.indented():
                lines.append('  ' + line)
        return [str(self.label)] + lines

    def is_leaf(self):
        return not self.branches

We can use the Tree class easily.

def fib_tree(n):
    """A Fibonacci tree.

    >>> print(fib_tree(4))
    3
      1
        0
        1
      2
        1
        1
          0
          1
    """
    if n == 0 or n == 1:
        return Tree(n)
    else:
        left = fib_tree(n-2)
        right = fib_tree(n-1)
        fib_n = left.label + right.label
        return Tree(fib_n, [left, right])


def leaves(tree):
    """Return the leaf values of a tree.

    >>> leaves(fib_tree(4))
    [0, 1, 1, 0, 1]
    """
    if tree.is_leaf():
        return [tree.label]
    else:
        return sum([leaves(b) for b in tree.branches], [])


def height(tree):
    """The height of a tree."""
    if tree.is_leaf():
        return 0
    else:
        return 1 + max([height(b) for b in tree.branches])
